Phosphonates Antiscalants, Corrosion Inhibitors and Chelating Agents

  • 1-Hydroxy Ethylidene-1,1-Diphosphonic Acid
1-Hydroxy Ethylidene-1,1-Diphosphonic Acid

1-Hydroxy Ethylidene-1,1-Diphosphonic Acid

  • HEDP
  • 1-Hydroxy Ethylidene-1,1-Diphosphonic Acid
  • Product description: HEDP is an organophosphoric acid corrosion inhibitor. It can chelate with Fe, Cu, and Zn ions to form stable chelating compounds.
  • INQUIRY

CAS 2809-21-4

Alias: 1-Hydroxy Ethylidene-1, 1-Diphosphonic Acid,    Dequest 2010,    HEDPA

Molecular formula: C2H8O7P2 Relative molecular mass: 206.02

Structural formula:


I. Product Property

HEDP is an organophosphoric acid corrosion inhibitor. It can chelate with Fe, Cu, and Zn ions to form stable chelating compounds. It can dissolve the oxidized materials on these metals surfaces. HEDP shows excellent scale and corrosion inhibition effects under temperature 250. HEDP has good chemical stability under high pH value, hard to be hydrolyzed, and hard to be decomposed under ordinary light and heat conditions. Its acid/alkali and chlorine oxidation tolerance are better than that of other organophosphoric acids (salt). HEDP can react with metal ions in water system to form hexa-element chelating complex, with calcium ion in particular. Therefore, HEDP has good antiscale and visible threshold effects. When built together with other water treatment chemicals, it shows good synergistic effects.

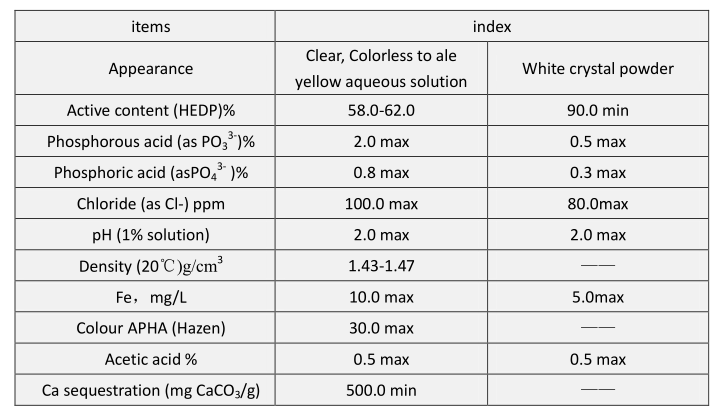

II.

items

index

Appearance

Clear, Colorless to ale yellow aqueous solution

Active content (HEDP)%

58.0-62.0

Phosphorous acid (as PO33-)%

2.0 max

Phosphoric acid (asPO43- )%

0.8 max

Chloride (as Cl-) ppm

100.0 max

pH (1% solution)

2.0 max

Density (20)g/cm3

1.43-1.47

Femg/L

10.0 max

Colour APHA (Hazen)

30.0 max

Acetic acid %

0.5 max

Ca sequestration (mg CaCO3/g)

500.0 min

III. Application scope and Usage

HEDP is used as scale and corrosion inhibition in circulating cool water system, oil field and low-pressure boilers in fields such as electric power, chemical industry, metallurgy, fertilizer, etc. In light woven industry, HEDP is used as detergent for metal and nonmetal. In dyeing industry, HEDP is used as peroxide stabilizer and dye-fixing agent; in non-cyanide electroplating, HEDP is used as chelating agent. The dosage of 1-10mg/L is preferred as scale inhibitor, 10-50mg/L as corrosion inhibitor, and 1000-2000mg/L as detergent. Usually, HEDP is used together with polycarboxylic acid.

IV. Package and Storage

It is usually packed in 30kg or 250kg plastic drum, and can be also determined by users. It can be stored for ten months in shady and dry place under room condition.

. Safety Protection:

This product is in acidity. Avoid contact with eye and skin. Rinse with plenty of water shortly after being bodily stained.
